25 – 65 PTO HP

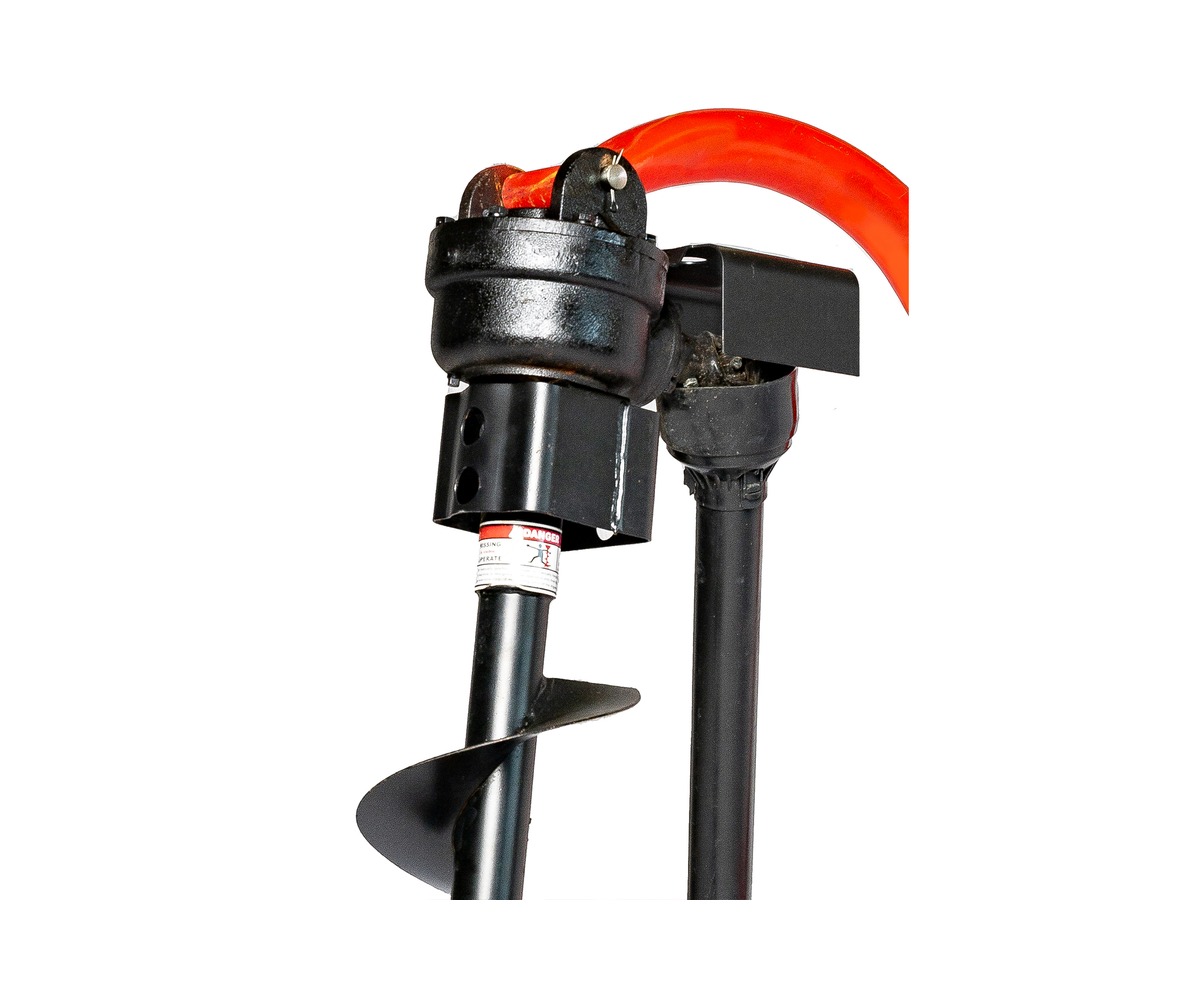

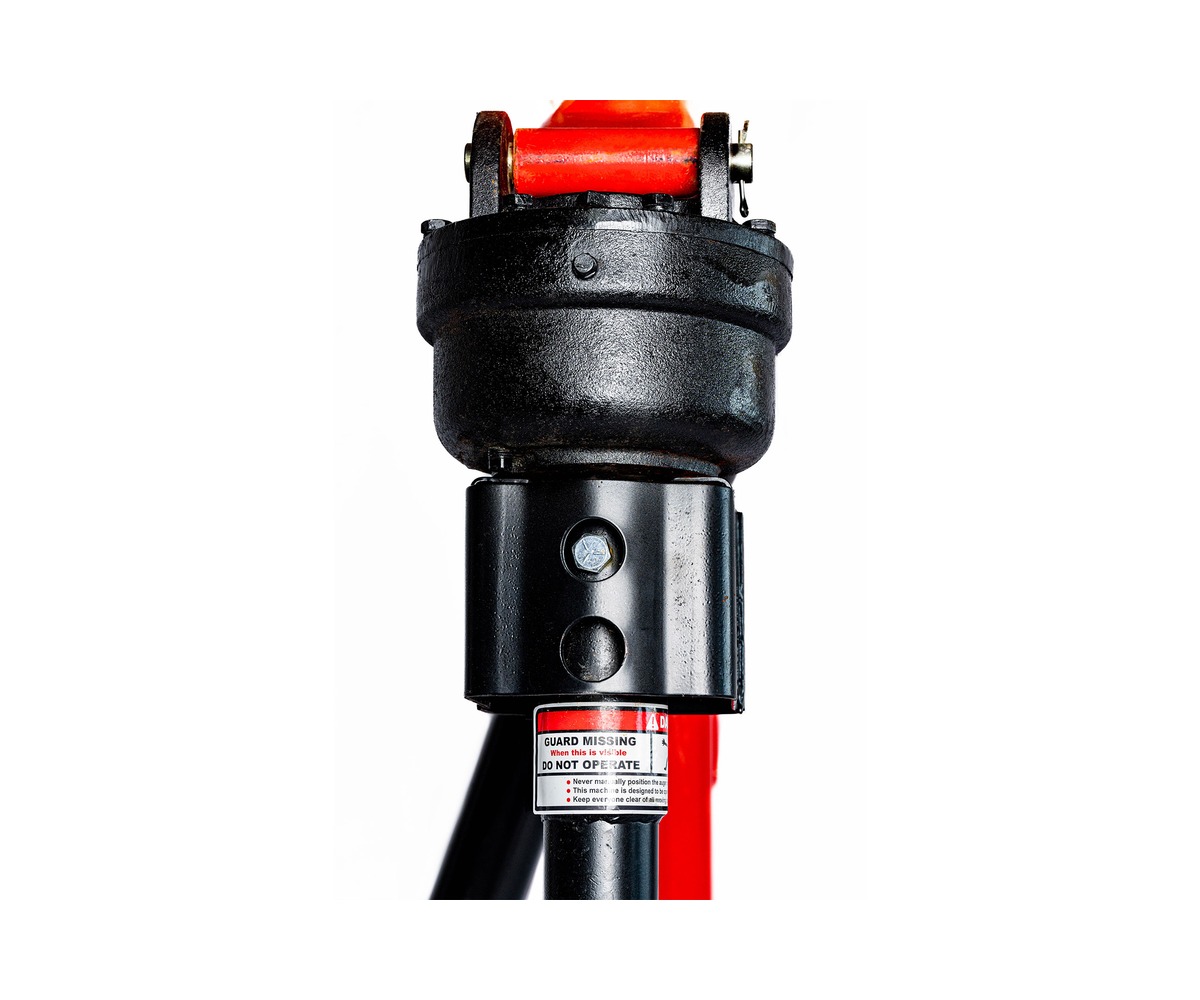

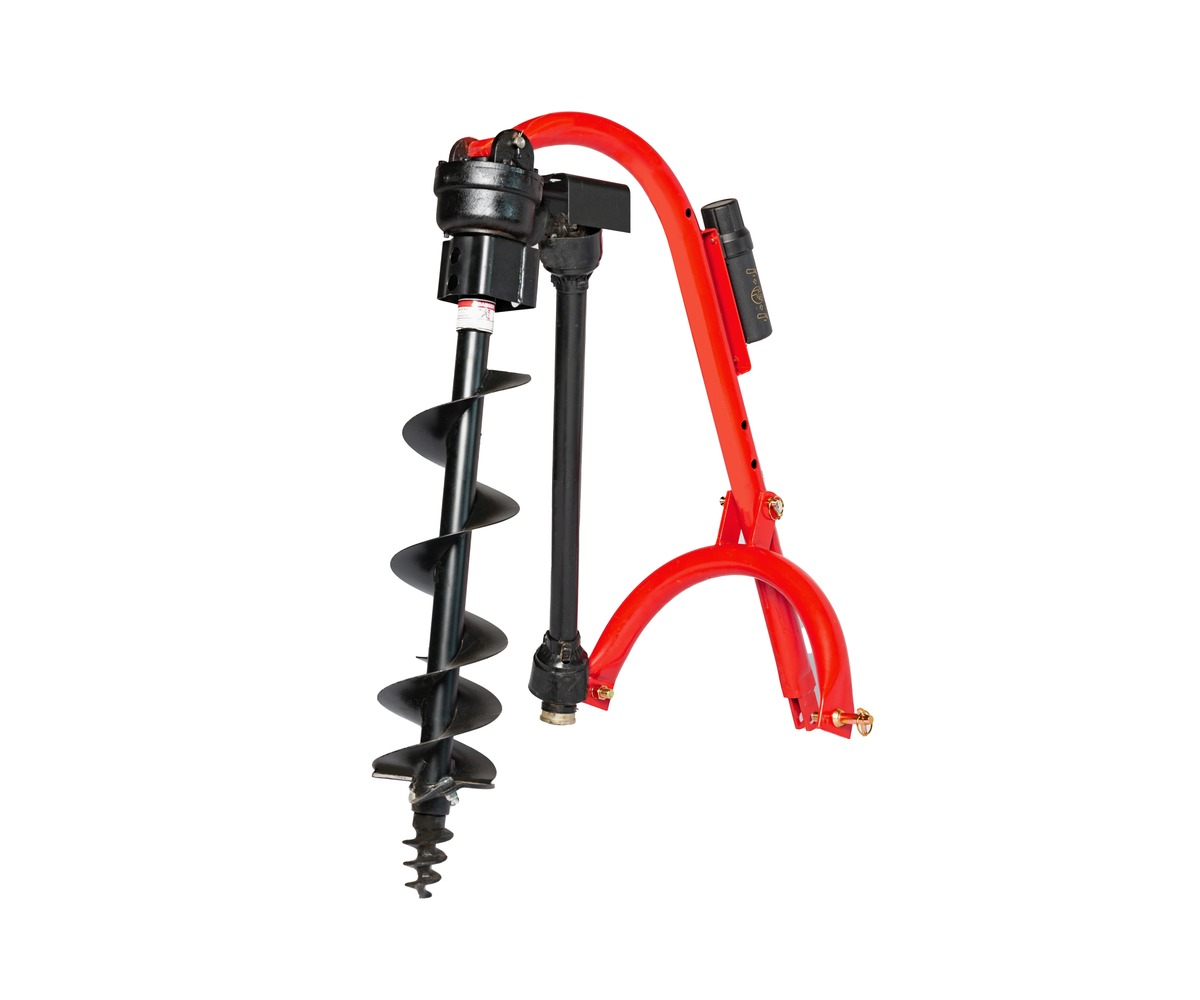

This utility sized auger will bore holes of 6”, 9”, or 12” diameter up to 45” deep. Strong and durable construction makes digging post holes for fence posts, or any number of other uses fast and easy. Our shear bolt driveline protection helps prevent equipment damage when unexpectedly contacting an immovable object.
Our unit can operate on a variety of tractors within the 25 to 65 PTO horsepower range. Compatible with most Cat 1 and 2 three-point tractor hitches. The steel auger has replaceable, bolt-on cutting edges to maintain productive boring speeds throughout the life of the post hole digger.
| PHD | |
|---|---|
| Product Family | PHD Series |
| Product | PHD |
| Description | Standard Duty Post Hole Digger |
| Notes | 6", 9", & 12" Augers available |
| Gearbox | 3:1 Ratio, 2" Output Shaft |
| A-frame Material | 2-7/8" O.D. Tubing |
| Boom Material | 2-7/8" O.D. Tubing |
| Weight (lbs) | 265 lbs |
| PTO Drive Shaft | Yoke TS 6-spline PTO |
| Hitch | Cat 1 & 2 |
| Guarding Options | On Driveline, Gearbox "U" Joint, & gearbox output shaft |
