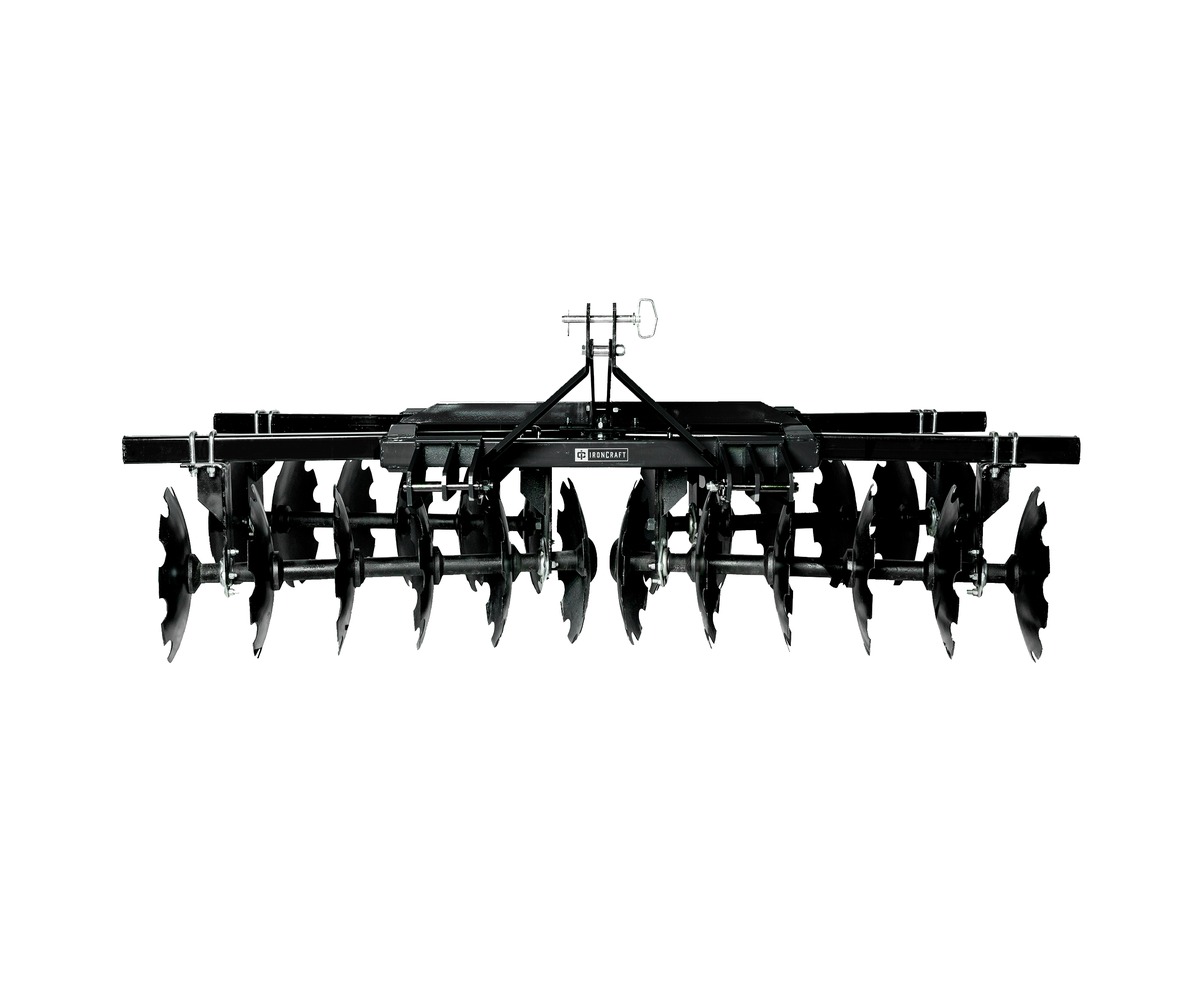

7400 Series Heavy-Duty Tubing Disc Harrow

35 – 80 Engine HP

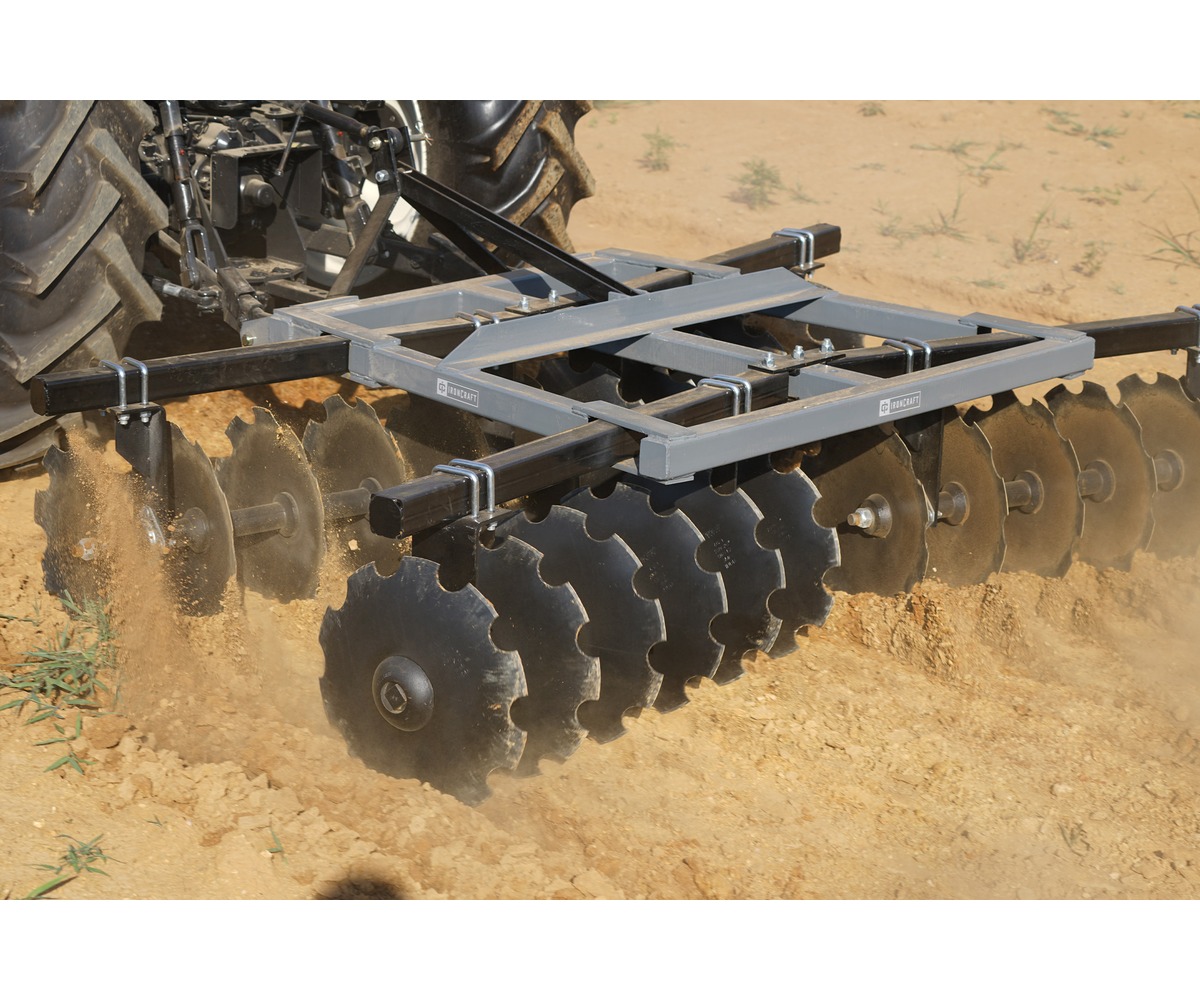

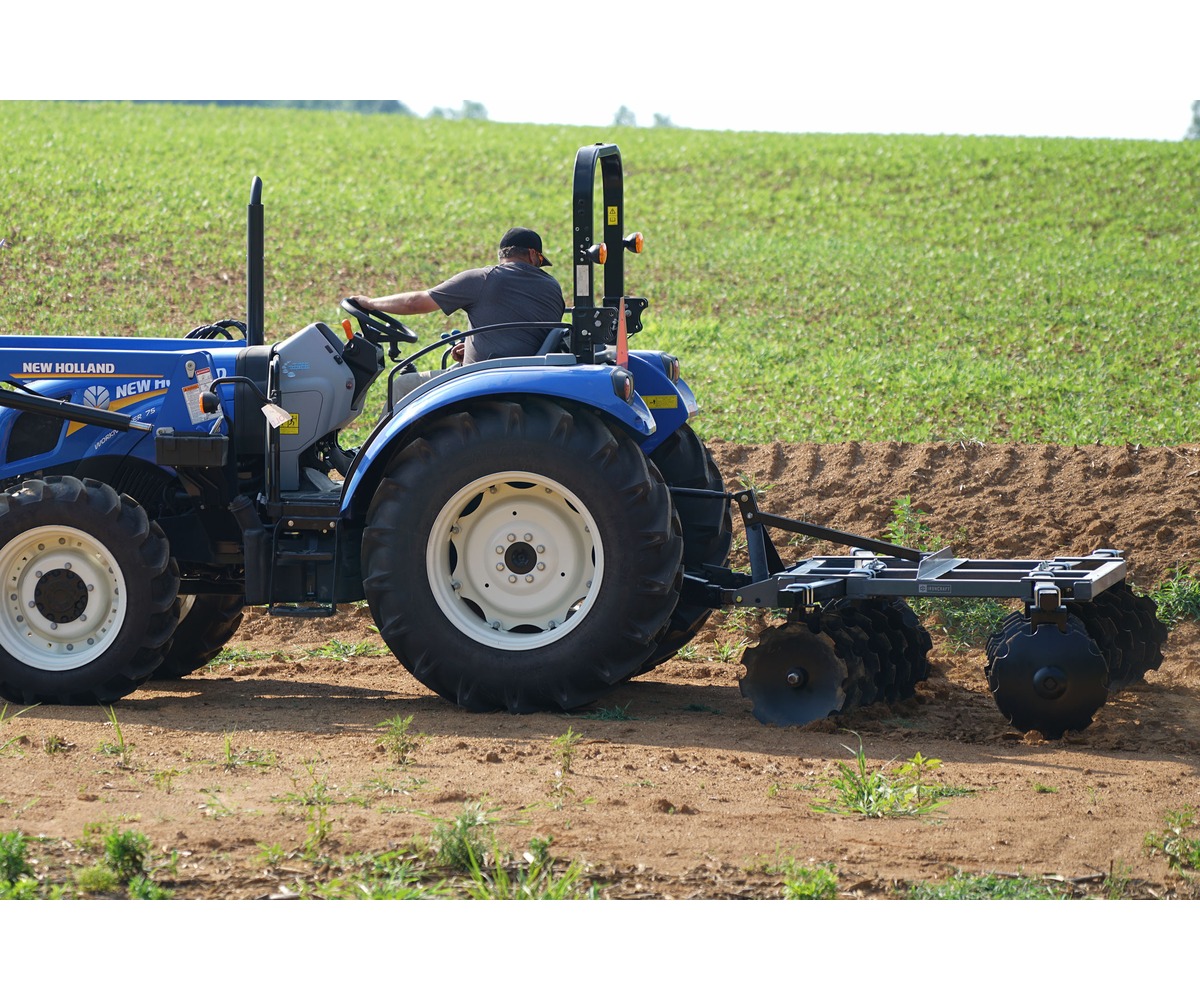

These Heavy-Duty Tubing Disc Harrows are designed with notched discs which easily break up and redistribute cultivated topsoil or prepare seed beds and fields for planting. They will easily meet the needs of commercial landscapers, farms, ranches, and construction applications. They are available in 72”, 92”, and 108” cutting widths, and are designed for a Category I or Category II quick hitch. Three different models are offered for tractors ranging from 35 to 80 hp.

View Manual

Available Colors

  • Gray

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Subscribe to our Newsletter

Categories: , Brand:

Description

Specs

7416 7420 7424
Product Family 7400 Series 7400 Series 7400 Series
Product 7416 7420 7424
Description 6' Heavy Duty Tube Frame Disc Harrow 7-1/2' Heavy Duty Tube Frame Disc Harrow 9' Heavy Duty Tube Frame Disc Harrow
Notes Unit has sealed bearings Unit has sealed bearings Unit has sealed bearings
HP Required 35 – 60 50 – 70 60 – 80
Working Width 72" 92" 108"
# of Disc Blades 16 20 24
Disc Blade Size 20" 20" 20"
Disc Blade Spacing 9" 9" 9"
Weight (lbs) 872 lbs 1019 lbs 1250 lbs
Hitch Cat 1 Cat 1 Cat 1 & 2
