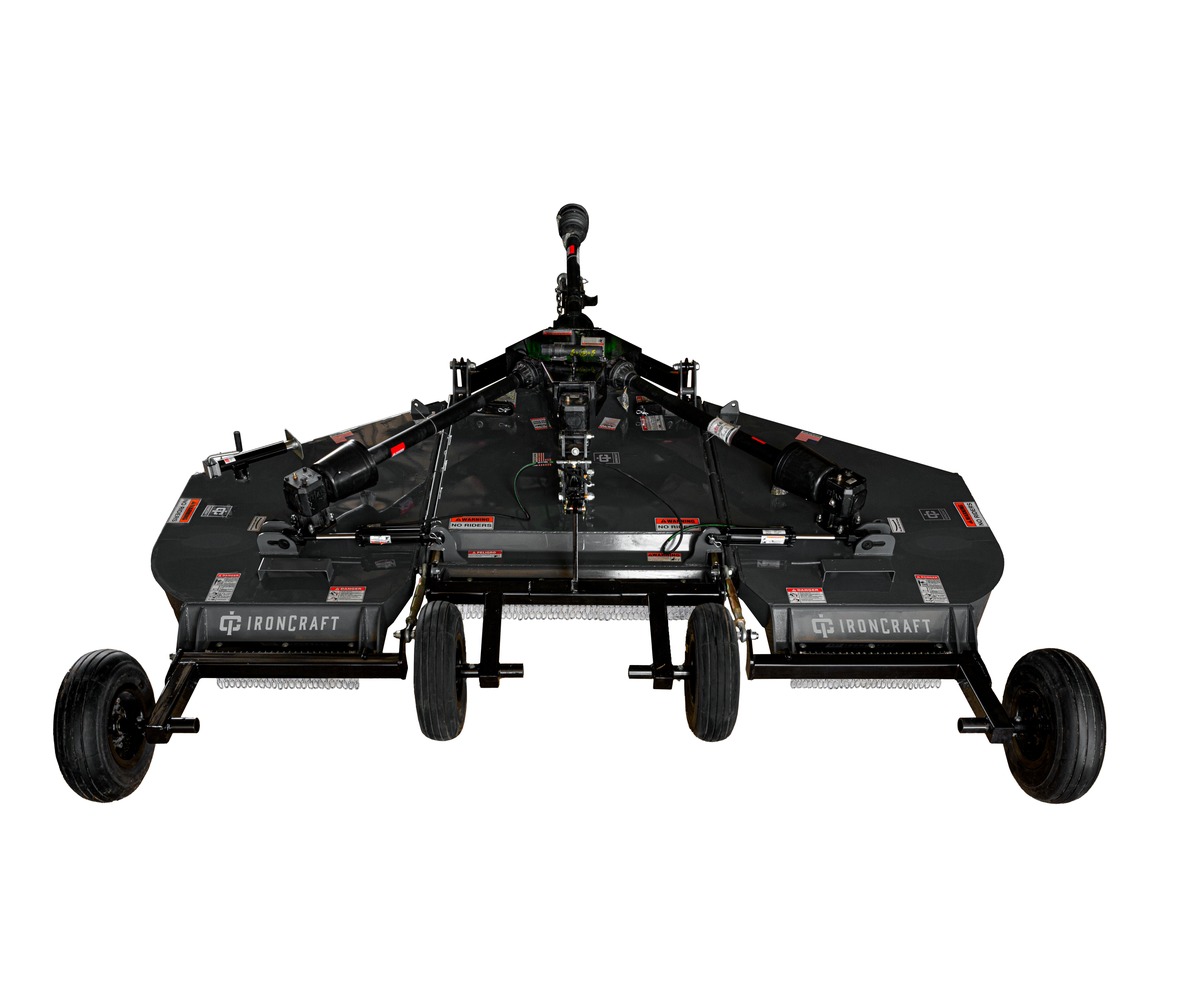

2512 Series 12′ Flex Wing Rotary Cutter

35 PTO HP Min

If you are looking for a Flex-Wing Rotary Cutter for your compact tractor, the IronCraft 2512 is the choice for you. With its smooth top deck and spring suspension, this flex-wing is designed to cut grass, weeds, and light brush up to 2” in material while only requiring a minimum PTO horsepower of 35 and one hydraulic outlet. With five different color choices you are able to match your cutter to your tractor.

View Literature | View Manual

Available Colors

Gray
Orange
Red
Green
Blue

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Description

Specs

	2512
Product Family	2512 Series
Product	2512
Description	12' Flex Wing Rotary Cutter
RPM	540
HP Required	35 minimum PTO (gear drive transmission)
Working Width	144"
Overall Width	151"
Overall Length	158"
Tongue Weight	759 lbs
Weight (lbs)	2630 lbs
Cutting Height	2-1/2" to 12"
Cutting Capacity	up to 2"
Deck Thickness	10 GA
Deck Height	11"
Side Bands	3/16"
Hinge Rods	1"
Suspension	Single Spring
Skid Shoes	Replaceable
PTO Drive Shaft	ASAE CAT 5 Constant Velocity
Wing Drive PTO	ASAE CAT 4
Driveline Protection	Slip Clutch
Blade Holder	3/16" formed plate w/ 3/4" x 2" blade bar
Gearbox Rating	175 HP
Outboard Gearbox Rating	75 HP
Blades	1/2" x 3" with lift
Blade Overlap	6"
Wheel Type	Laminated or Used Aircraft
Hitch Type	Swivel Clevis
Gearbox Warranty	5 year limited
Safety Tow Chain	Standard
Guarding Options	Single Row Chains Standardd
FPM	15657
