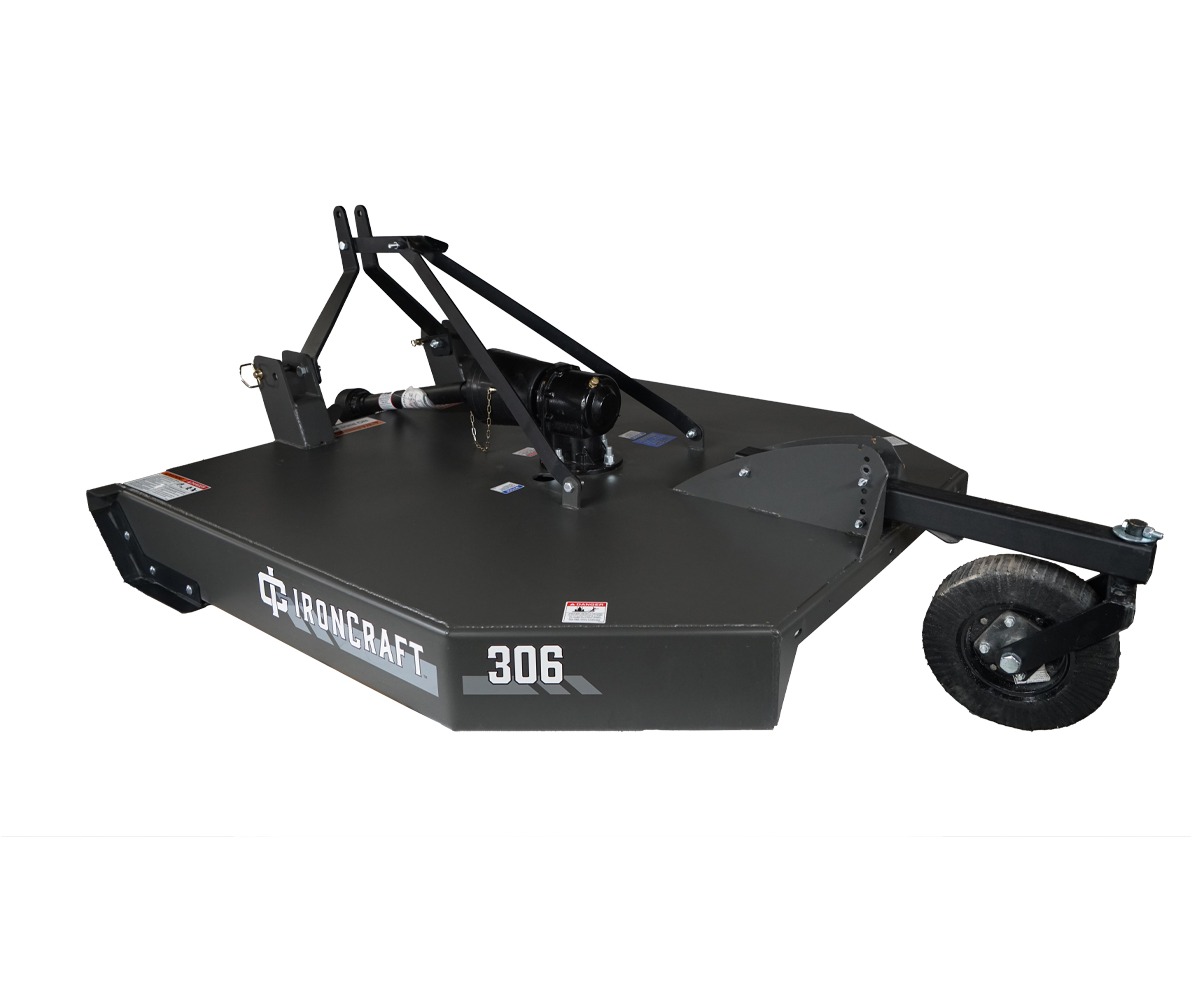

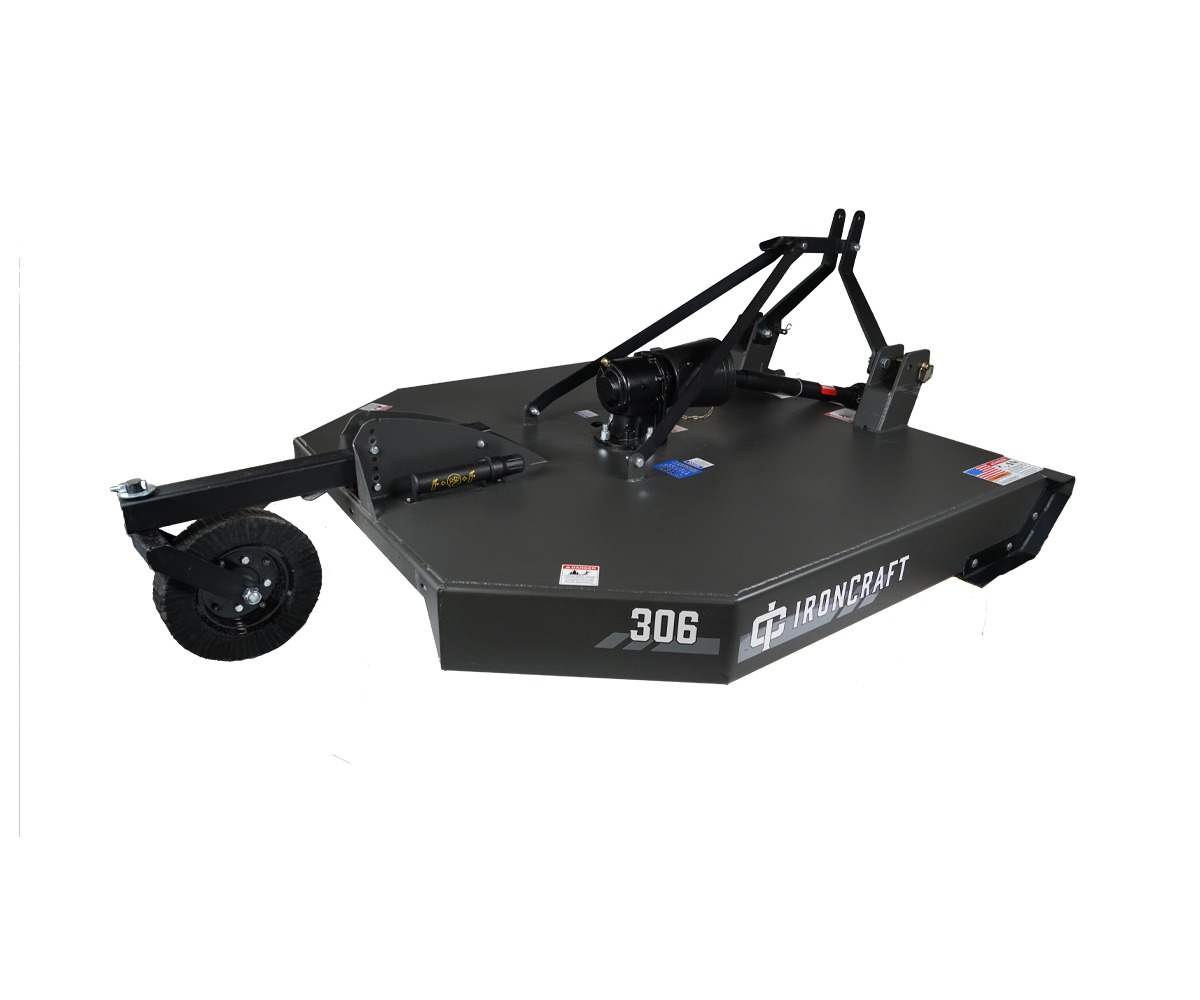

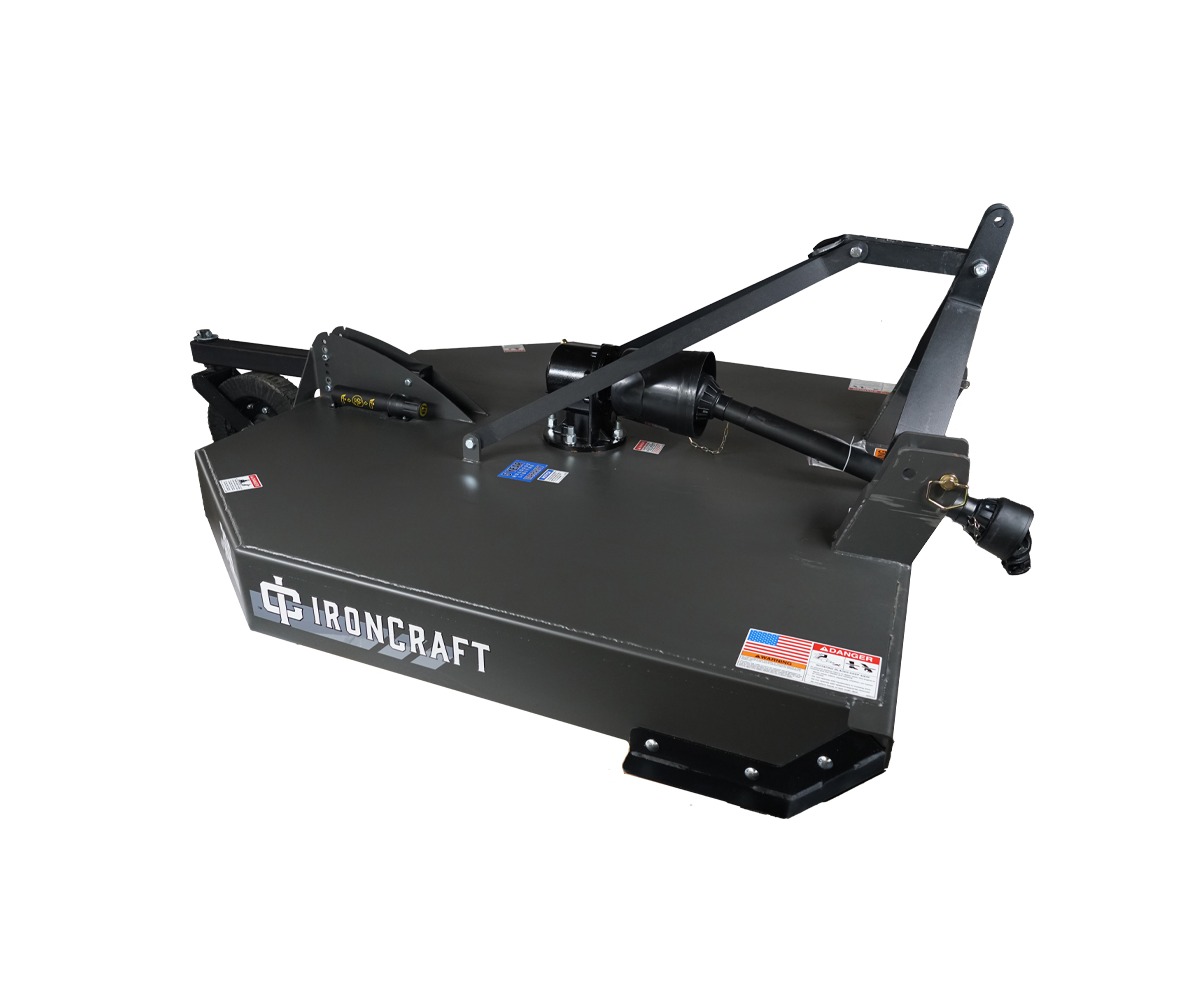

300 Smooth-Top Cutter

32 – 90 PTO HP

These smooth-top cutters are designed for medium/heavy-duty applications such as weeds, grass, and brush up to 2” diameter. These cutters are designed to work with 32 to 90 horsepower tractors, and are available in 60” and 72” widths.

These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields are optional.

View Literature | View Manual

Available Colors

Gray
Orange
Red
Green
Blue

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Description

Specs

	305	306 2 TW	306 1 TW
Product Family	300 Series	300 Series	300 Series
Product	305	306 2 TW	306 1 TW
Description	5' Smooth Top Cutter	6' Smooth Top Cutter – Dual Tailwheel	6' Smooth Top Cutter – Single Tailwheel
RPM	540	540	540
HP Required	32 – 90 PTO	47 – 90 PTO	45 – 90 PTO
Working Width	60"	72"	72"
Weight (lbs)	640 lbs	740 lbs	740 lbs
Number of Tailwheels	1	2	1
Cutting Height	2" Minimum	2" Minimum	2" Minimum
Cutting Capacity	2"	2"	2"
Deck Thickness	10 GA	10 GA	10 GA
Side Bands	8-1/2"	8-1/2"	8-1/2"

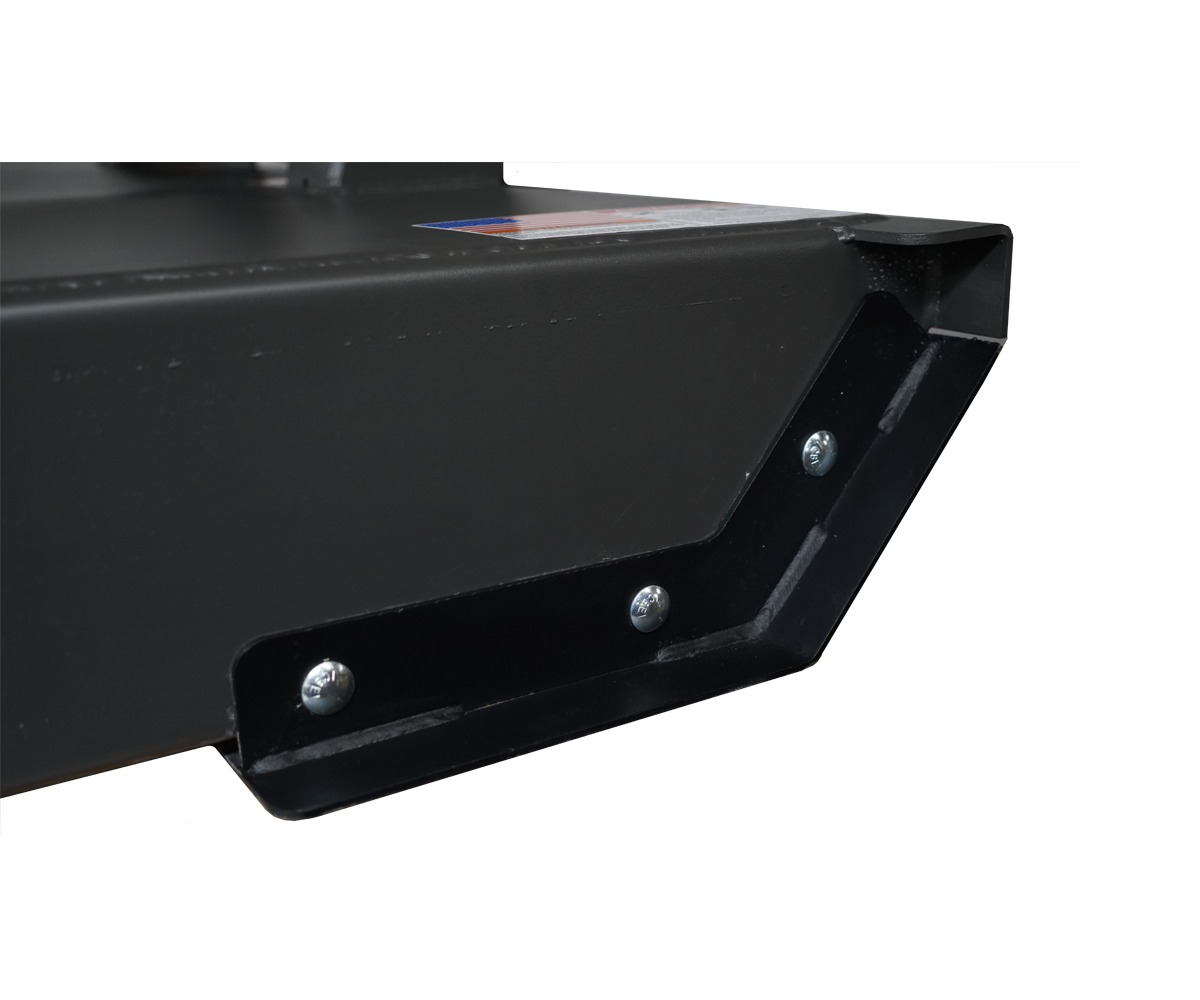

Skid Shoes	Replaceable	Replaceable	Replaceable
PTO Drive Shaft	Series 4	Series 4	Series 4
Driveline Protection	Slip Clutch	Slip Clutch	Slip Clutch
Blade Holder	1/2" Plate	1/2" Plate	1/2" Plate

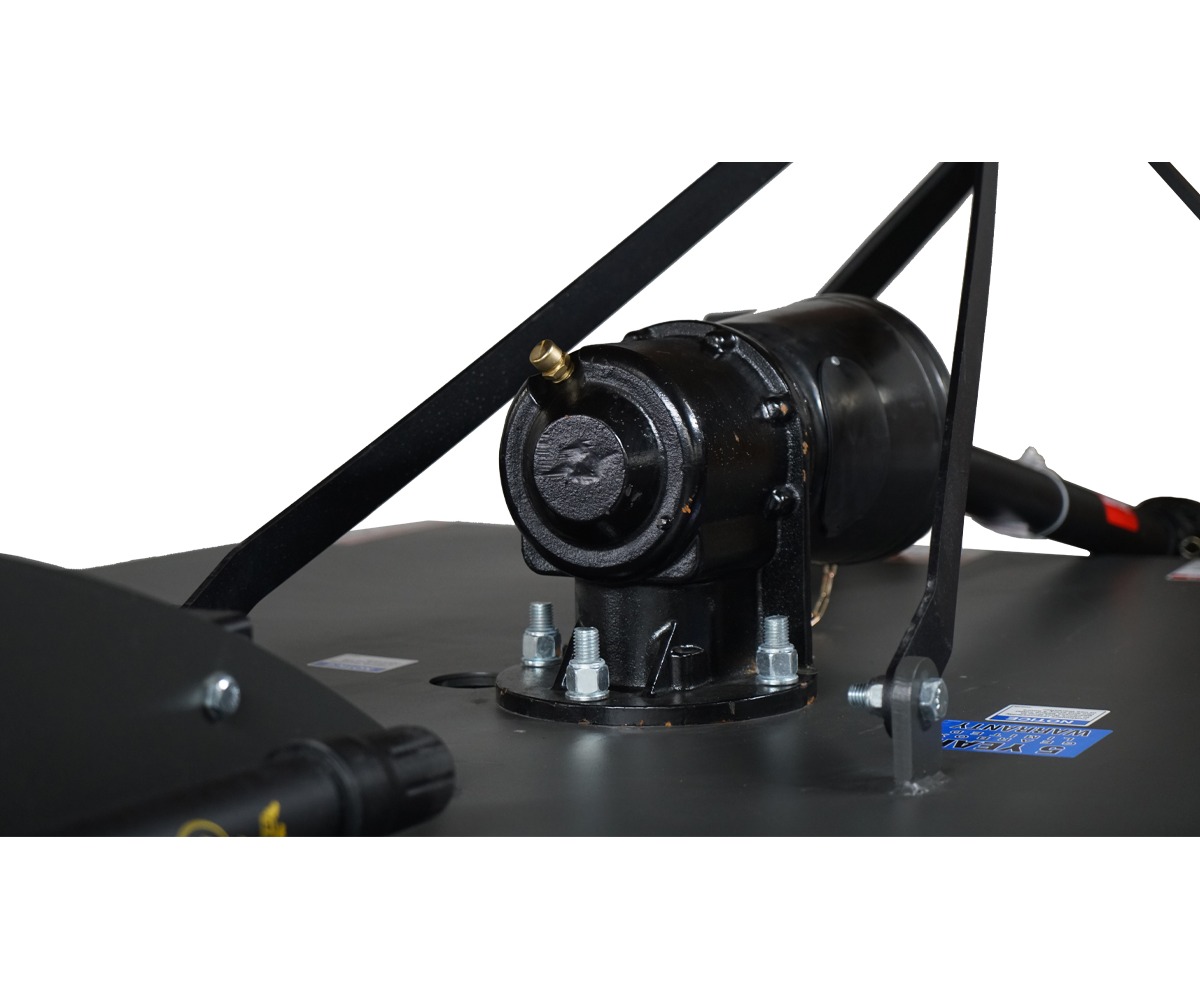

Gearbox Rating	100 HP	100 HP	100 HP
Blades	1/2" x 3"	1/2" x 3"	1/2" x 3"

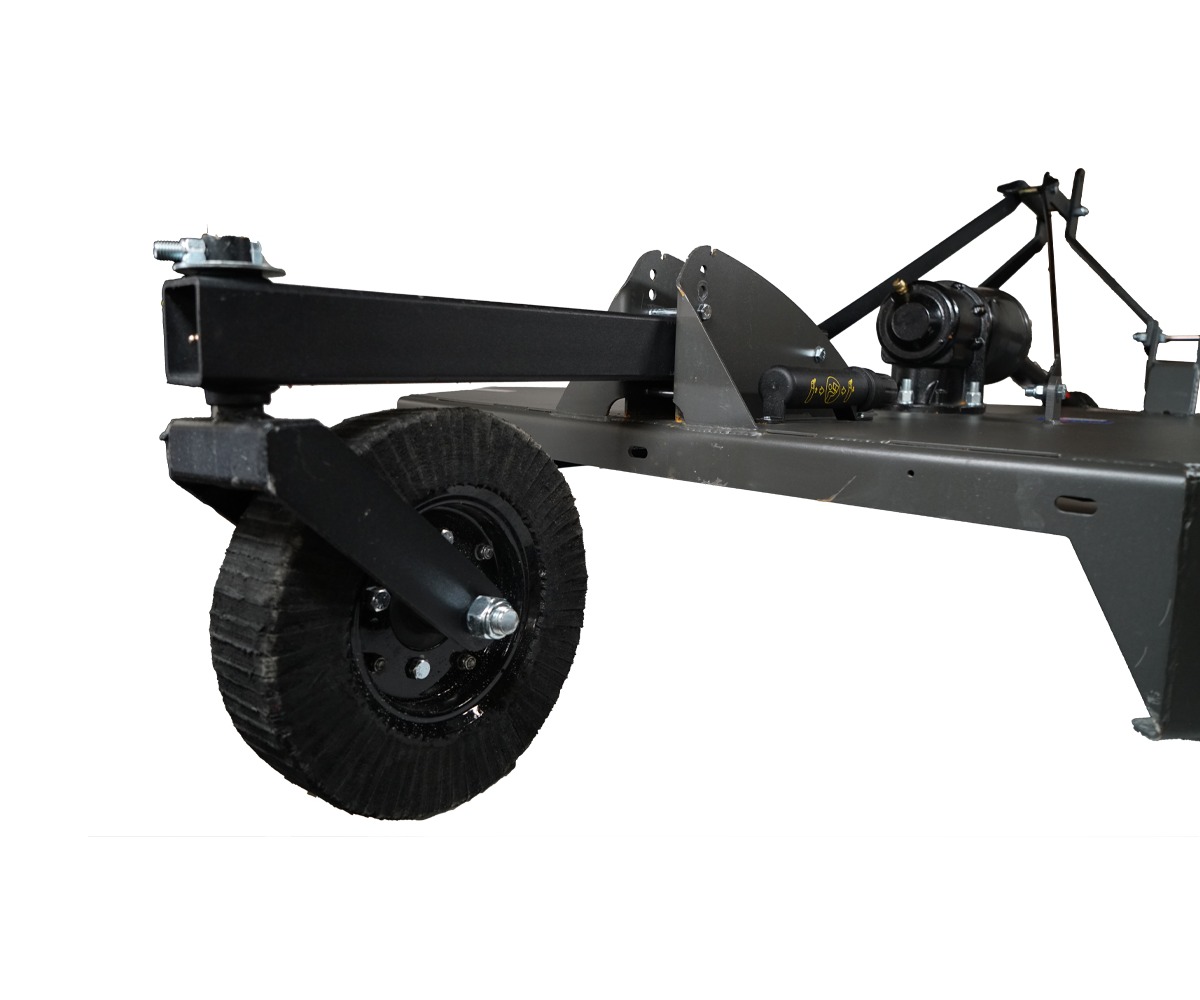

Wheel Type	15" Laminated	15" Laminated	15" Laminated
Hub Type	Greaseable	Greaseable	Greaseable
Hitch	Cat 1	Cat 1	Cat 1
Gearbox Warranty	5 year limited	5 year limited	5 year limited
Guarding Options	Rubber Guards or Chains	Rubber Guards or Chains	Rubber Guards or Chains
FPM	13,000 FPM	14,500 FPM	14,500 FPM
