1600 Series Heavy-Duty Cutter

47 – 100 PTO HP

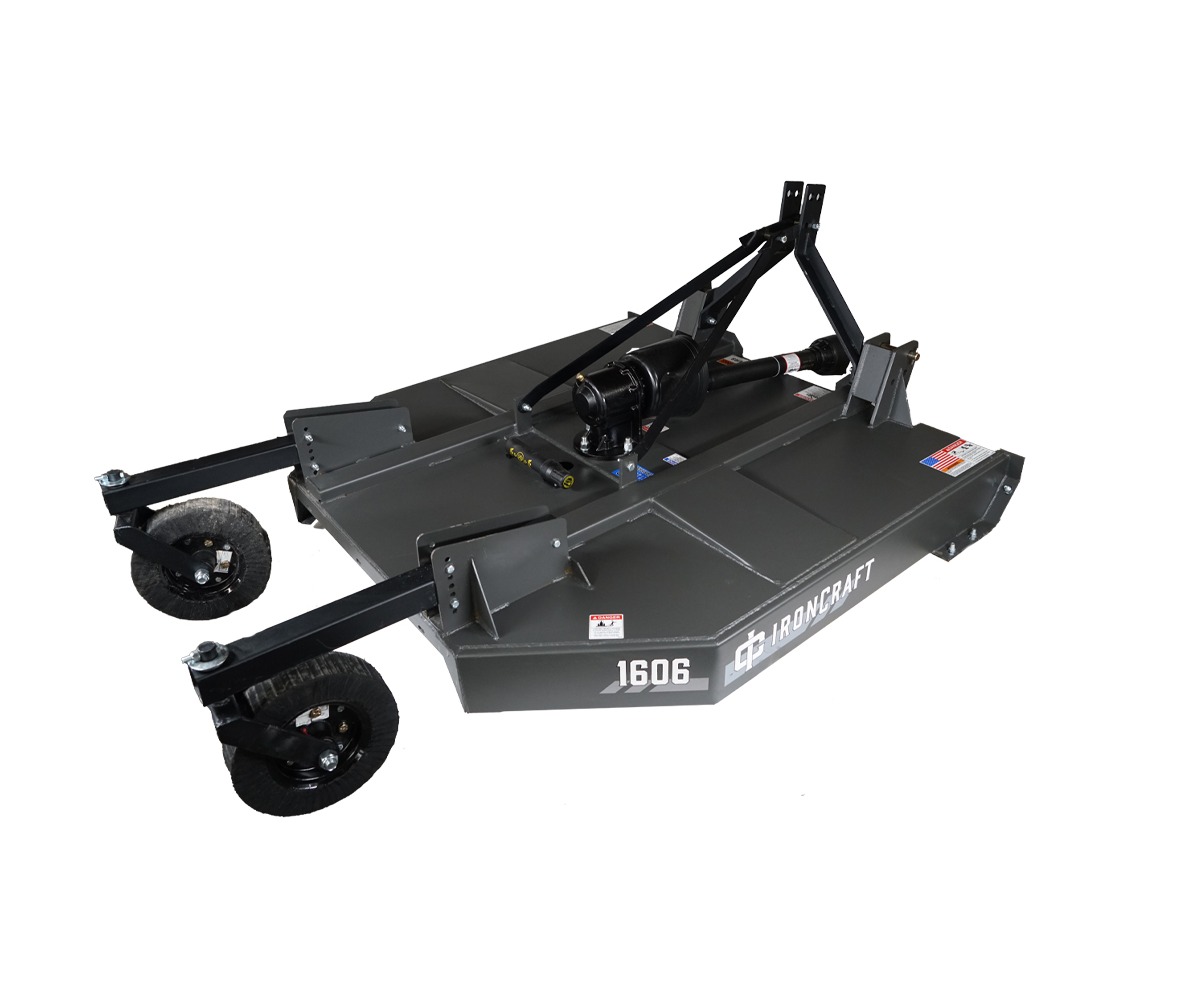

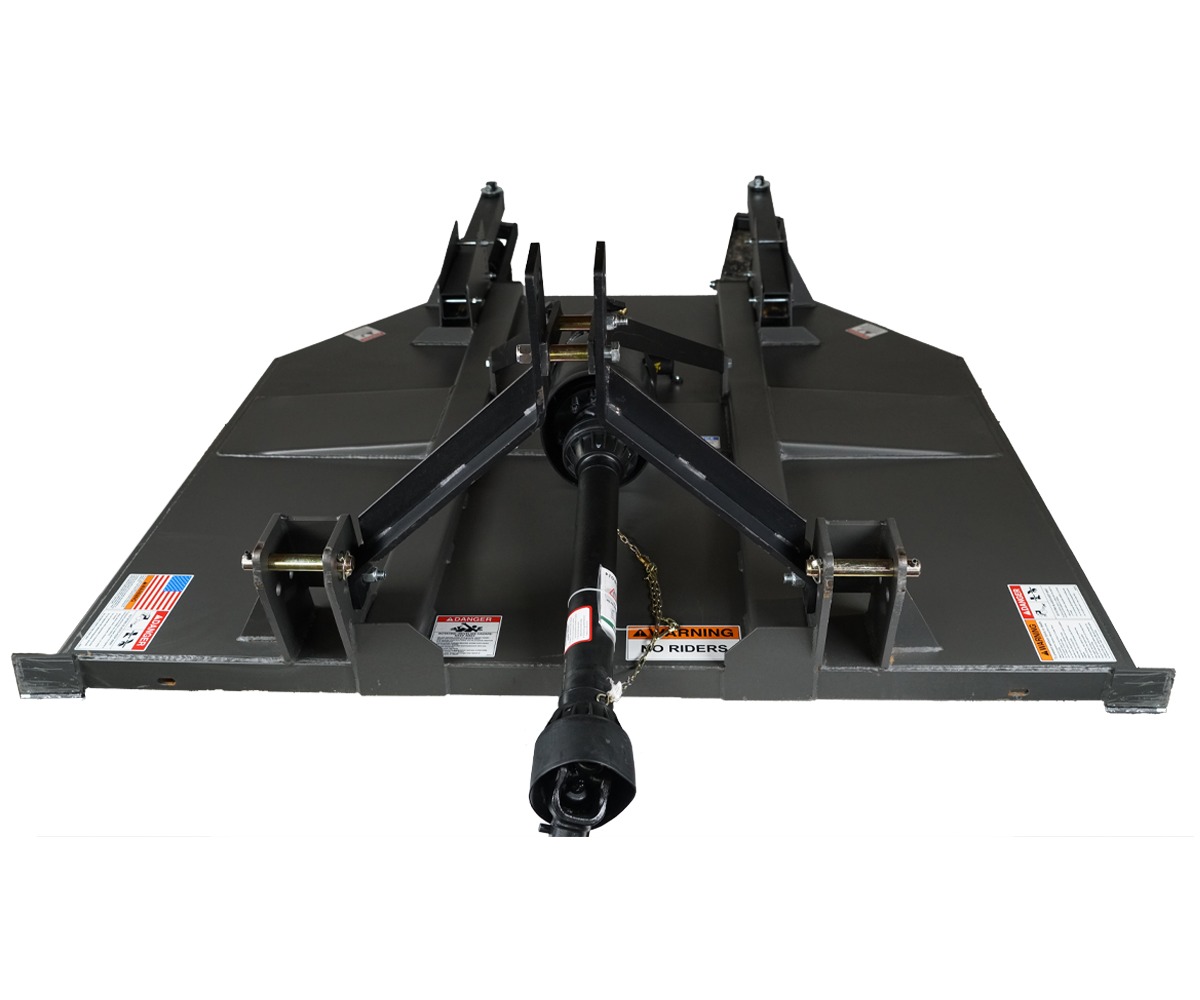

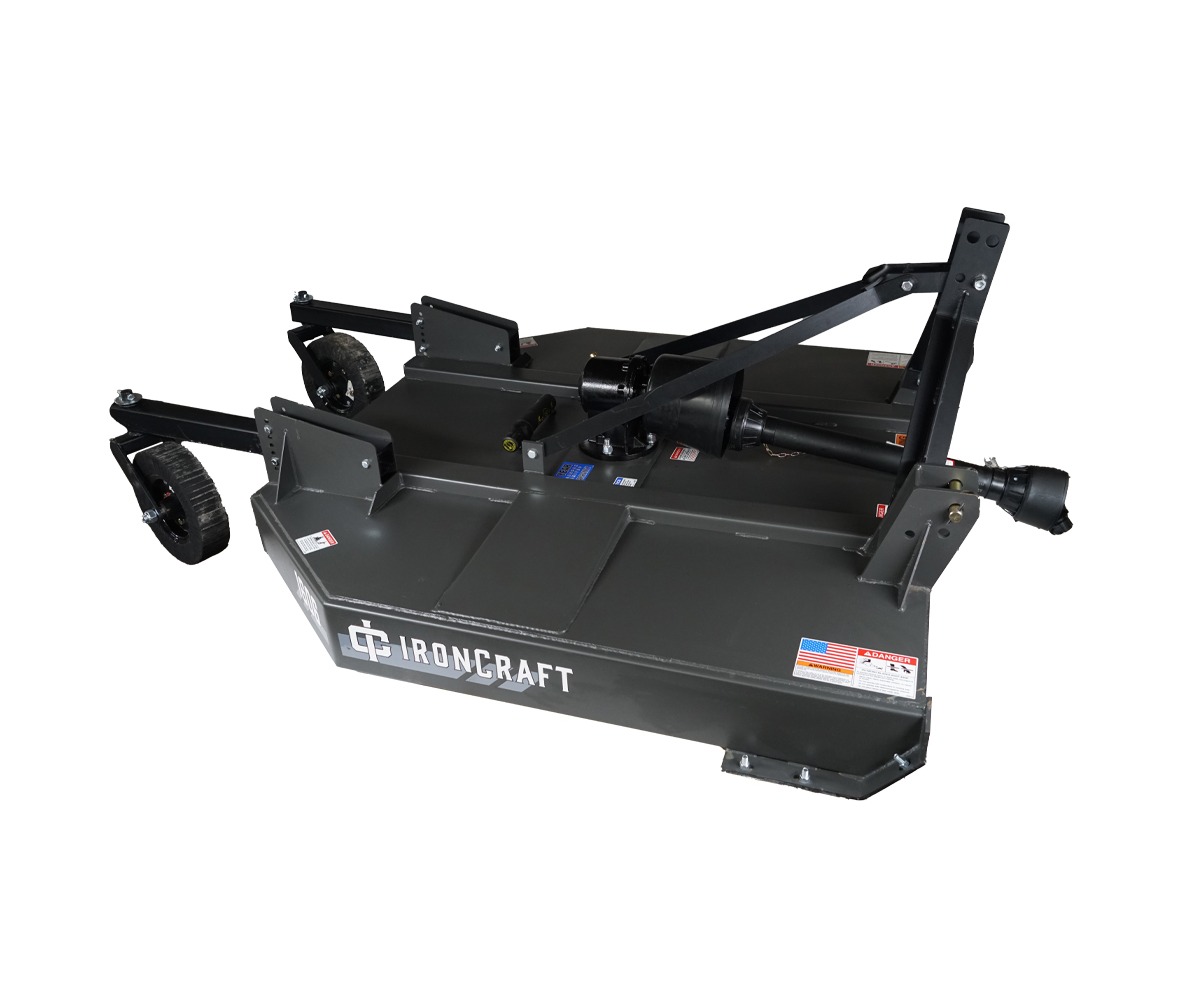

These Heavy-Duty Cutters are designed for heavy-duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with 47 to 100 hp tractors, and are available in 72” and 84” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain and rubber discharge shields are available.

View Literature | View Manual

Available Colors

  • Gray
  • Orange
  • Red
  • Green
  • Blue

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Subscribe to our Newsletter

Categories: , , Brand:

Description

Specs

1606 1607
Product Family 1600 Series 1600 Series
Product 1606 1607
Description 6' Heavy Duty Cutter 7' Heavy Duty Cutter
RPM 540 or 1000 540 or 1000
HP Required 47 – 100 PTO 55 – 100 PTO
Working Width 72" 84"
Weight (lbs) 1205 lbs 1375 lbs
Cutting Capacity 3" 3"
Deck Thickness 7 GA 7 GA
Side Bands 8" 8"
PTO Drive Shaft Series 5 Series 5
Blade Holder 1/2" 5/8"
Gearbox Rating 100 HP 100 HP
Wheel Type Laminated Laminated
Hub Type Greaseable Greaseable
Hitch Cat 1 & 2 Cat 1 & 2
Guarding Options Rubber Guards or Chains Rubber Guards or Chains
