X-treme Rotating Tree Shear

X-treme

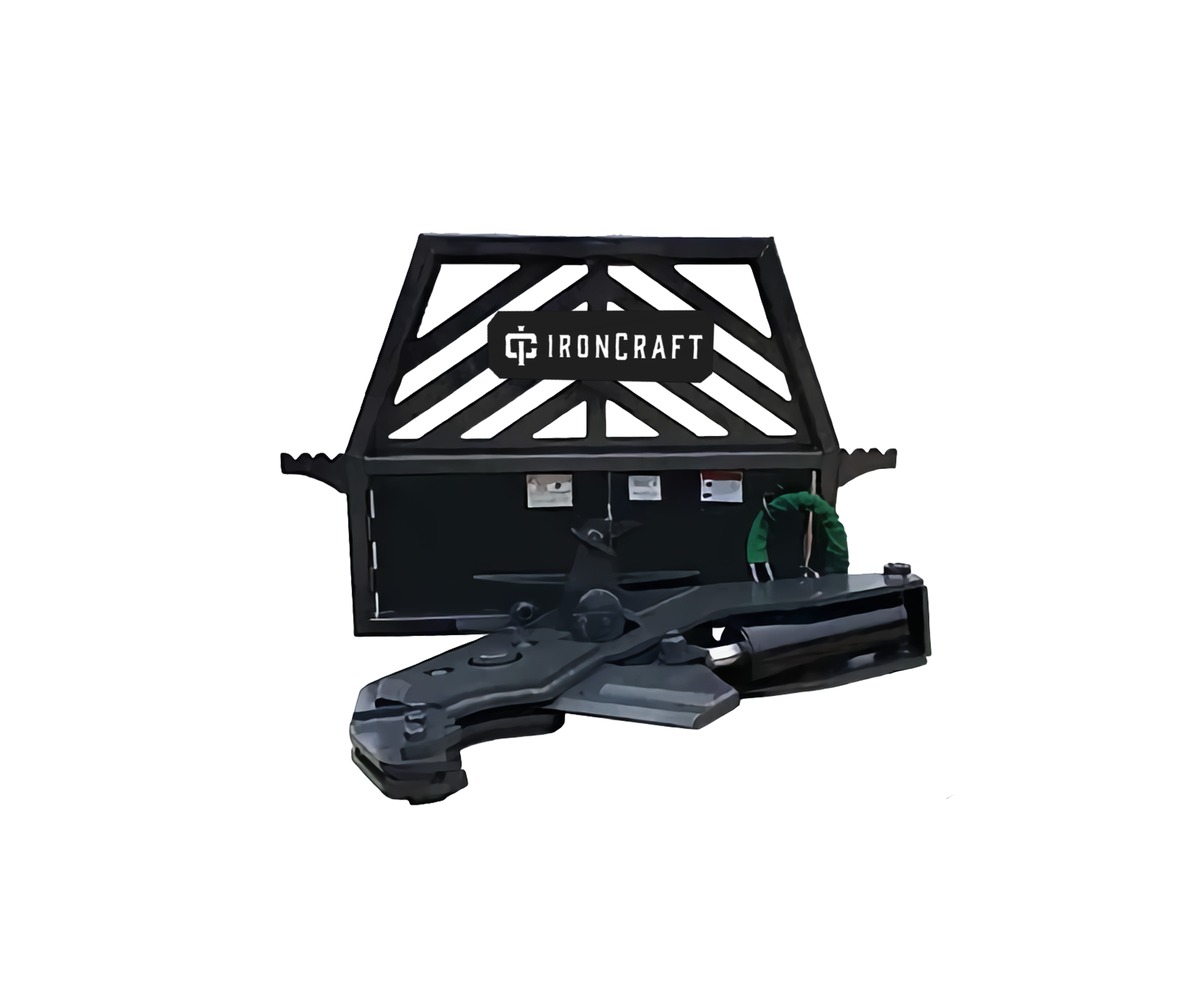

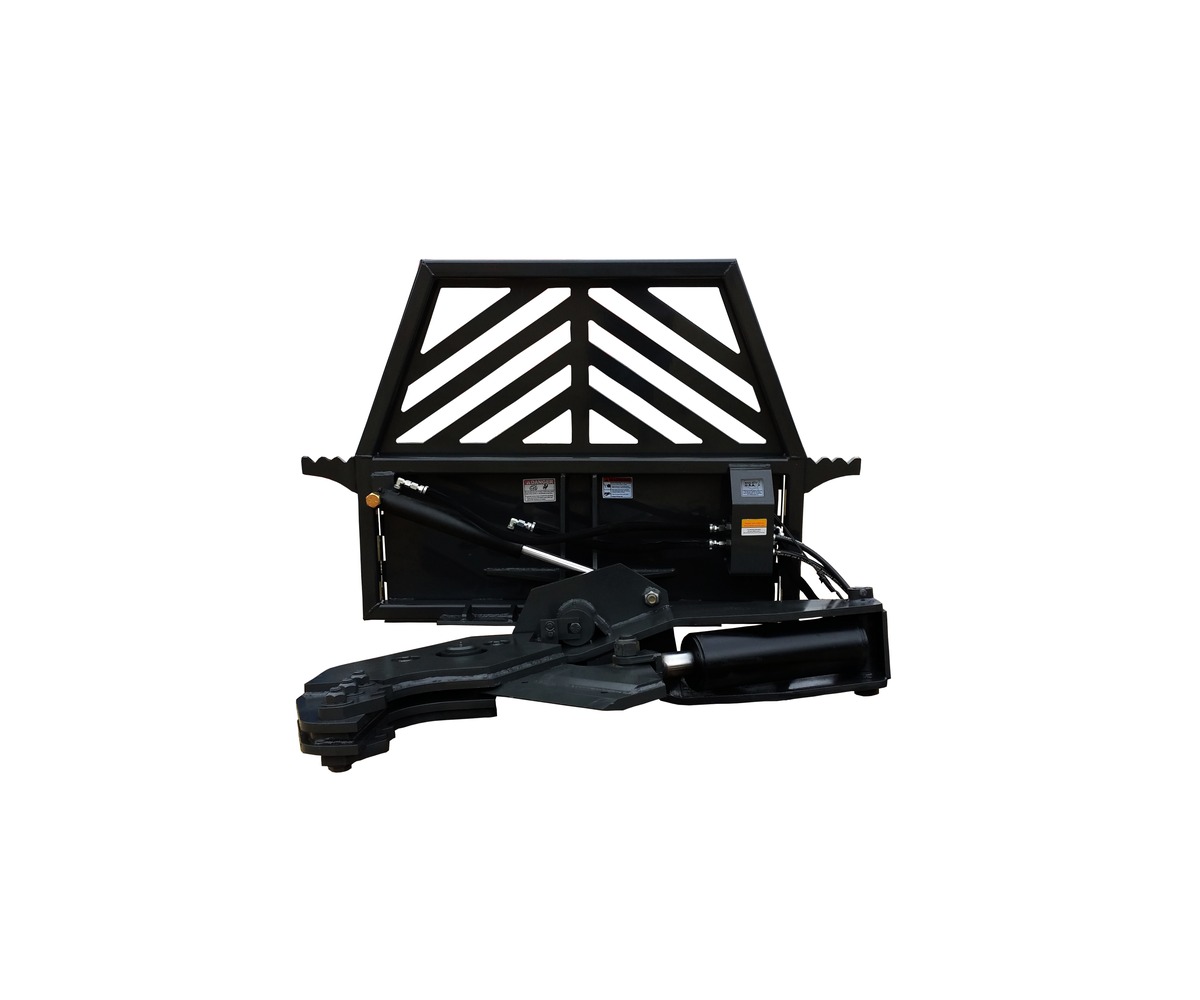

Our X-treme Rotating Tree Shear has a 5″ bore cylinder that can generate up to 40 tons of shearing force. It is constructed with a 1″ thick AR400 blade, which gives you the ability to cut up to 12″ diameter trees and logs. It features a 90 degree rotation that is offered in manual or hydraulic. (Note: manual is a two-man operation.) It’s design forces trees to fall consistently to the right, allowing the operator to accurately position where the tree will land.

View Literature | View Manual

Available Colors

  • Gray

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Subscribe to our Newsletter

Description

Specs

TRSH-HYD TRSHM-S
Product Family X-Treme Rotating Tree Shear X-Treme Rotating Tree Shear
Product TRSH-HYD TRSHM-S
Description X-TREME TREE SHEAR, HYDRAULIC ROTATING X-TREME TREE SHEAR, MANUAL ROTATING
Notes Capable of cutting 12" trees Capable of cutting 12" trees
Shearing Force 40 tons 40 tons
Degree of rotation 90 degrees 90 degrees
Cylinder Size 5" x 12" 5" x 12"
Wiring Harness Options Universal, 7pin, 8pin, or 14 pin Universal, 7pin, 8pin, or 14 pin
Weight (lbs) 1056 999
Blades 1" thick AR400 1" thick AR400
