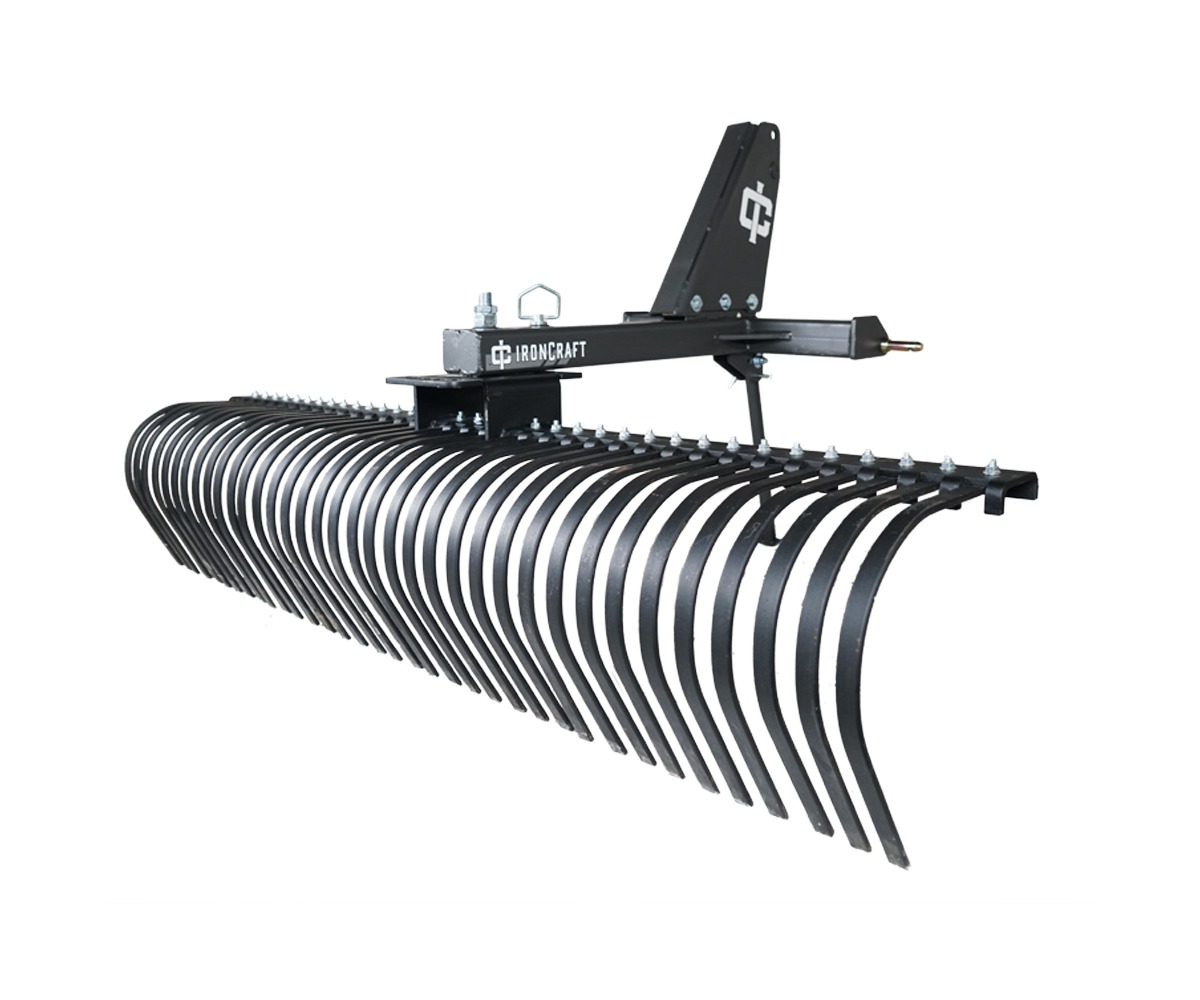

5100 Series Standard-Duty Landscape Rake

15 – 45 Engine HP

These Standard-Duty Landscape Rakes work well for cleaning and preparing sites for seeding. They can spread rocks, move debris, and reshape soil. Designed for use by landscapers and contractors, they will meet the demands required for golf course maintenance, terracing hillsides, shaping run-off control ditches, and preparing areas for reforestation. The rakes feature a five-position angle adjustment, are available in widths from 48” to 96”, and are are Category I quick hitch compatible.

View Manual

Available Colors

Gray

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Description

Specs

	5104	5105	5106	5107	5108
Product Family	5100 Series	5100 Series	5100 Series	5100 Series	5100 Series
Product	5104	5105	5106	5107	5108
Description	4' Standard Duty Landscape Rake	5' Standard Duty Landscape Rake	6' Standard Duty Landscape Rake	7' Standard Duty Landscape Rake	8' Standard Duty Landscape Rake
HP Required	15 – 45	20 – 45	25 – 45	30 – 45	35 – 45
Working Width	48"	60"	72"	84"	96"
Tines per foot	6	6	6	6	6
Angle Adjustment	5 position, Forward and Reverse	5 position, Forward and Reverse	5 position, Forward and Reverse	5 position, Forward and Reverse	5 position, Forward and Reverse
A-frame Material	3/8"	3/8"	3/8"	3/8"	3/8"
Mainframe	4" x 4" Angle	4" x 4" Angle	4" x 4" Angle	4" x 4" Angle	4" x 4" Angle
Weight (lbs)	158 lbs	180 lbs	229 lbs	251 lbs	285 lbs
Hitch	Cat 1	Cat 1	Cat 1	Cat 1	Cat 1
