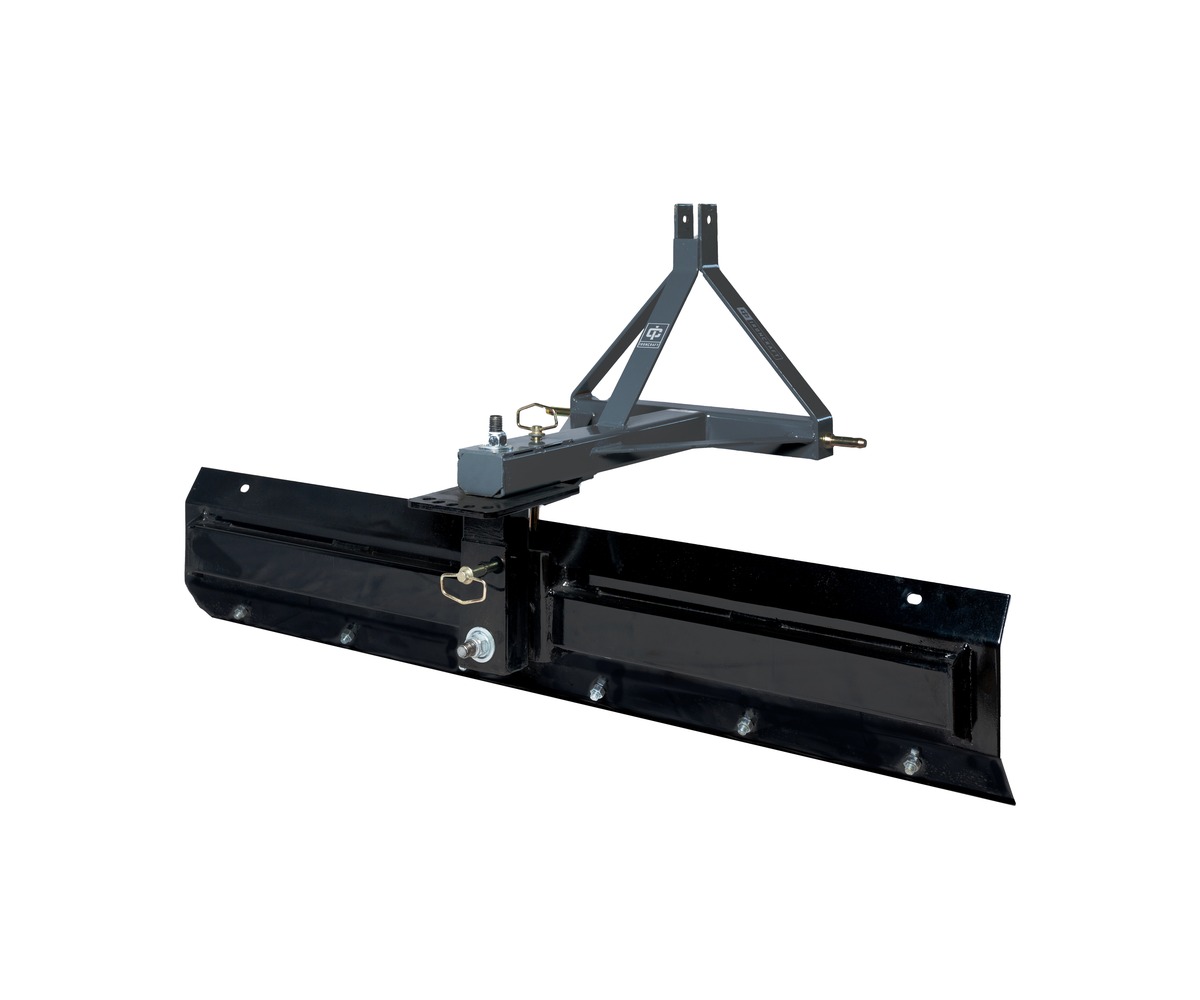

4300 Series Standard-Duty Grader Blade

15 – 40 Engine HP

These Standard-Duty Grader Blades offer ease of moving topsoil, gravel, snow, and other similar materials. They are ideal for basic land grading, leveling, or backfilling needs and are designed to work with 15 to 40 hp tractors. They feature a five-position angle adjustment, a three-position tilt adjustment, and are available in four different working widths from 48” to 84”. These models are Category I quick hitch compatible.

View Manual

Available Colors

Gray

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Description

Specs

	4304	4305	4306	4307
Product Family	4300 Series	4300 Series	4300 Series	4300 Series
Product	4304	4305	4306	4307
Description	4' Standard Duty Grader Blade	5' Standard Duty Grader Blade	6' Standard Duty Grader Blade	7' Standard Duty Grader Blade
HP Required	15 – 30	15 – 35	15 – 40	15 – 40
Working Width	48"	60"	72"	84"
Height	13"	13"	14"	14"
Angle Adjustment	5 position, Forward and Reverse	5 position, Forward and Reverse	5 position, Forward and Reverse	5 position, Forward and Reverse
Tilt Adjustment	3 Position	3 Position	3 Position	3 Position
A-frame Material	3/8"	3/8"	3/8"	3/8"
Cutting Edges	6"	6"	6"	6"
Weight (lbs)	178 lbs	199 lbs	252 lbs	276 lbs
Hitch	Cat 1	Cat 1	Cat 1	Cat 1
