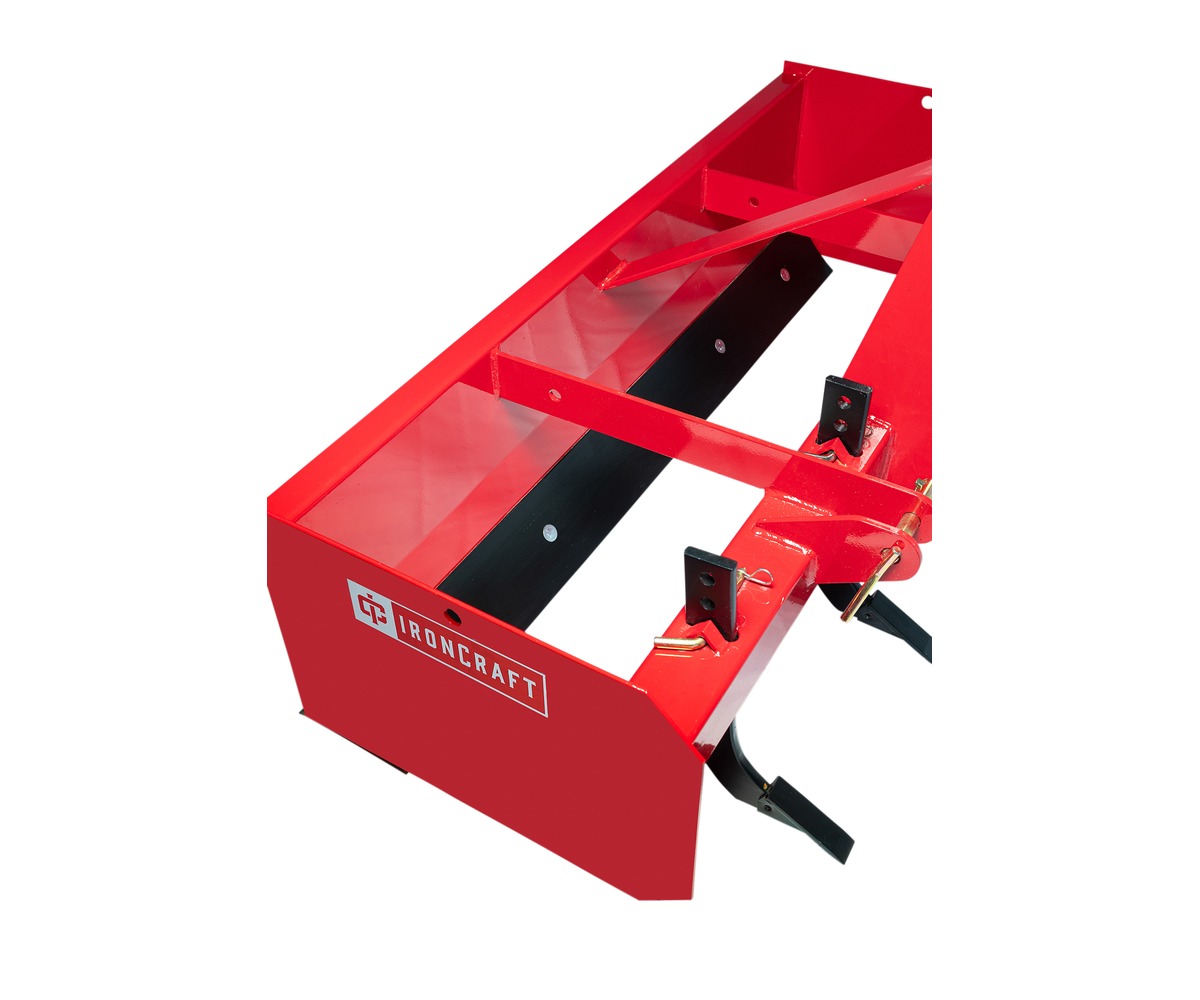

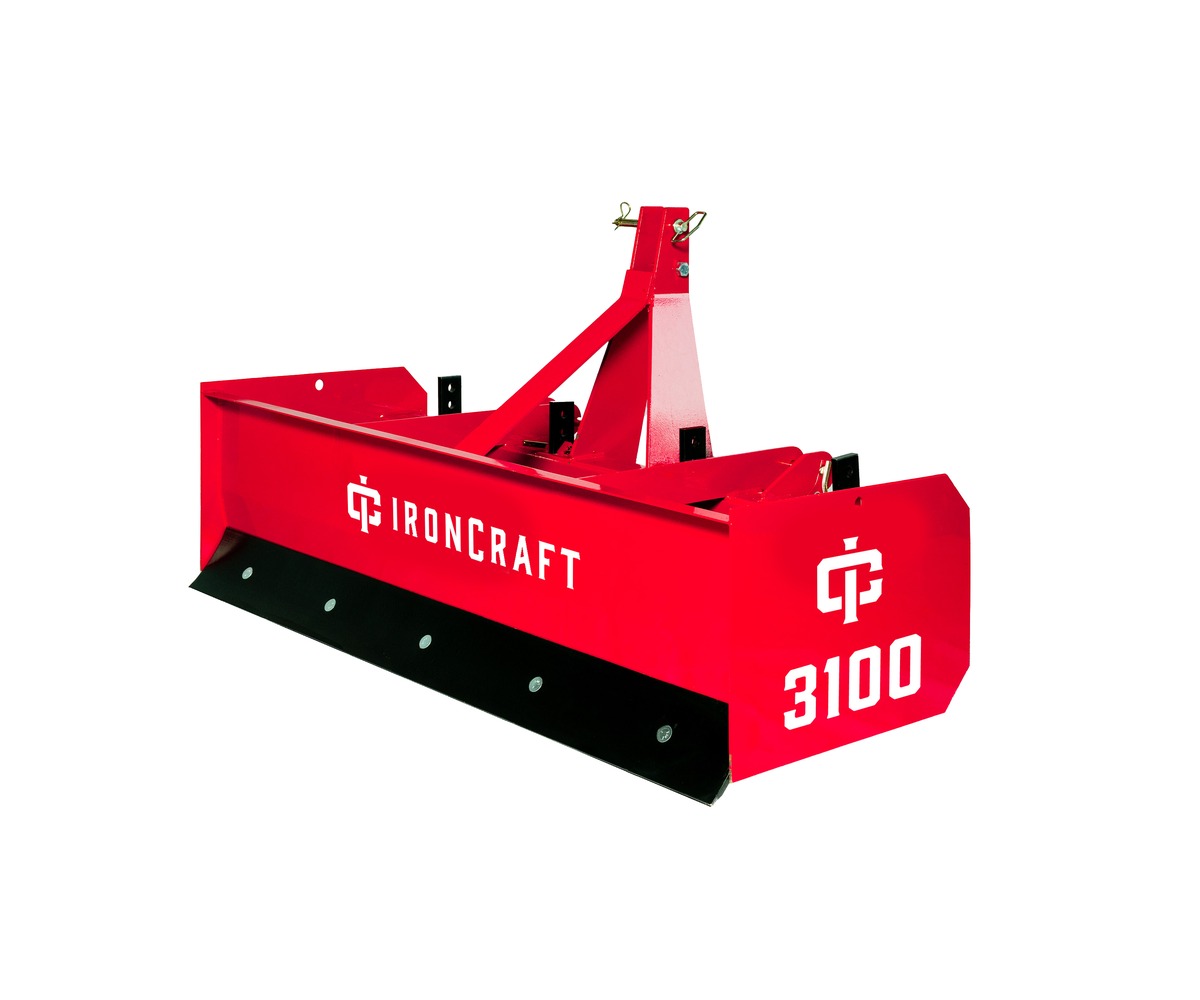

3100 Series Standard-Duty Box Blade

15 – 45 Engine HP

These Standard-Duty Box Blade Scrapers are designed specifically for working topsoil, gravel, mulch, or manure. Ideal for use on the farm, at building sites, or outdoor arenas.

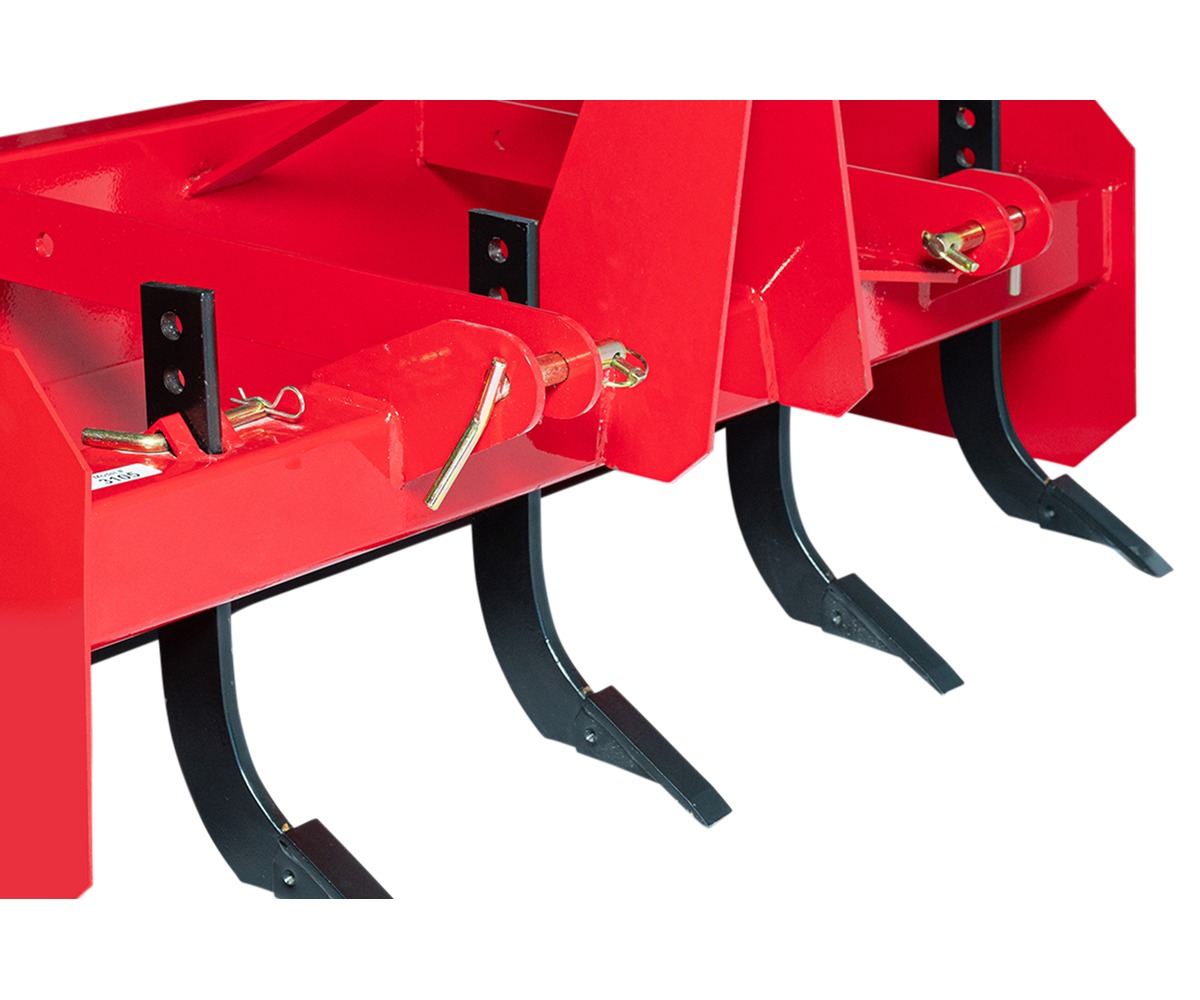

These scrapers are designed to work with 15 to 45 hp tractors, and are available in five different widths from 48” to 96”. They feature three to six adjustable ripper shanks (dependent on the width of the unit). The box blade has a 17” moldboard height, 22” depth, 6” cutting edge, and is Category I quick hitch compatible.

View Literature | View Manual

Available Colors

Gray
Orange
Red
Green
Blue

For more product information or to place an order please contact us.

Get More Information
Have Questions? Call 330-674-0495

For financing information Click Here

Description

Specs

	3104	3105	3106	3107	3108
Product Family	3100 Series	3100 Series	3100 Series	3100 Series	3100 Series
Product	3104	3105	3106	3107	3108
Description	4' Standard Duty Box Blade	5' Standard Duty Box Blade	6' Standard Duty Box Blade	7' Standard Duty Box Blade	8' Standard Duty Box Blade
HP Required	15-45	15 – 45	15 – 45	15 – 45	15 – 45
Working Width	48"	60"	72"	84"	96"
Height	17"	17"	17"	17"	17"
Depth	22"	22"	22"	22"	22"
# of Shanks	3	4	5	6	6
A-frame Material	3/8"	3/8"	3/8"	3/8"	3/8"
Side Panel Material Thickness	1/4"	1/4"	1/4"	1/4"	1/4"
Cutting Edges	6"	6"	6"	6"	6"
Weight (lbs)	290 lbs	323 lbs	357 lbs	390 lbs	421 lbs
Hitch	Cat 1	Cat 1	Cat 1	Cat 1	Cat 1
